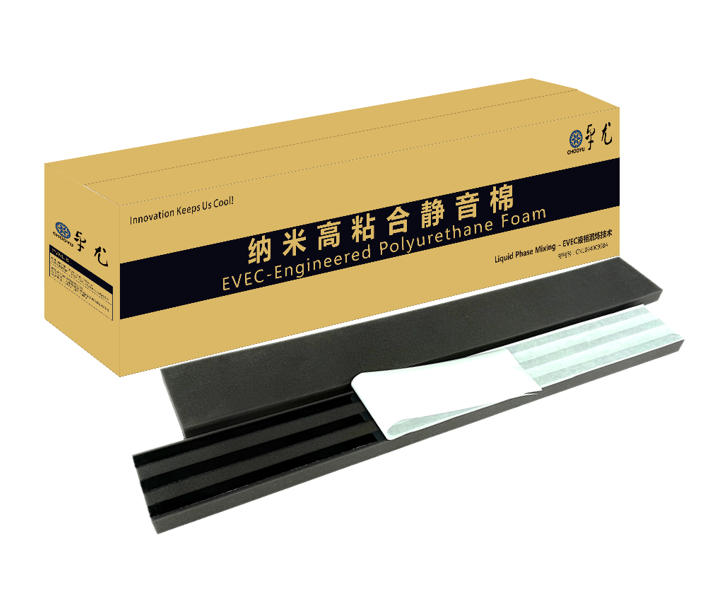

EVEC-Engineered Polyurethane Foam

PAKCOOL®

    基本性能:

  • Polyurethane porous structure for noise reduction, significantly weakens cavity noise.

  • Special formula and chemical rubber mixing process provide high viscoelasticity.

  • High bonding performance and excellent weather resistance.

  • Excellent stress buffering performance, acoustic foam does not crack.

  • Aging-resistant with strong stability.

  • Suitable for both new and used tires, with strong compatibility.

    应用:

  • Can be used by tire manufacturers to upgrade OE inner tire noise-reducing products; also applicable for retrofitting cleaned used tire inner walls.

EVEC-Engineered Polyurethane Foam Specification

characterisation APF-W100 APF-W120 APF-W140 Unit
Color Dark gray Dark gray Dark gray -
Number of Adhesive Strips 3 3 3 Line
Adhesive Strip Width 15-20 20-25 25-30 mm
Adhesive Strip Thickness 1.5±0.5 1.5±0.5 1.5±0.5 mm
Adhesive Strip Density 0.95±0.1 0.95±0.1 0.95±0.1 g/cm3
Foam Length 1000±10 1000±10 1000±10 mm
Foam Width 100±3 120±3 140±3 mm
Foam Thickness 30±3 30±3 30±3 mm
Foam Density 30±5 30±5 30±5 kg/m3
Distance from Adhesive Strip to Edge 6.5±1.5 6.5±1.5 6.5±1.5 mm
Foam Tensile Strength ≥160 ≥160 ≥160 kPa
Foam Elongation at Break ≥150 ≥150 ≥150 %

Initial Tack of Adhesive Strip (Method B)


≤20 ≤20 ≤20
 mm



Packaging Specifications for EVEC-Engineered Polyurethane Foam


Product Model Size (mm) Applicable tyre width Packaging specification
APF-W100 1000×100×30 155/165/175/185/195/205 2、4、8 strips/box
APF-W120 1000×120×30 215/225/235/245 2、4、8 strips/box
APF-W140 1000×140×30 255/265/275/285/295 2、4、8 strips/box


根据客户需求，提供专业定制化服务。
